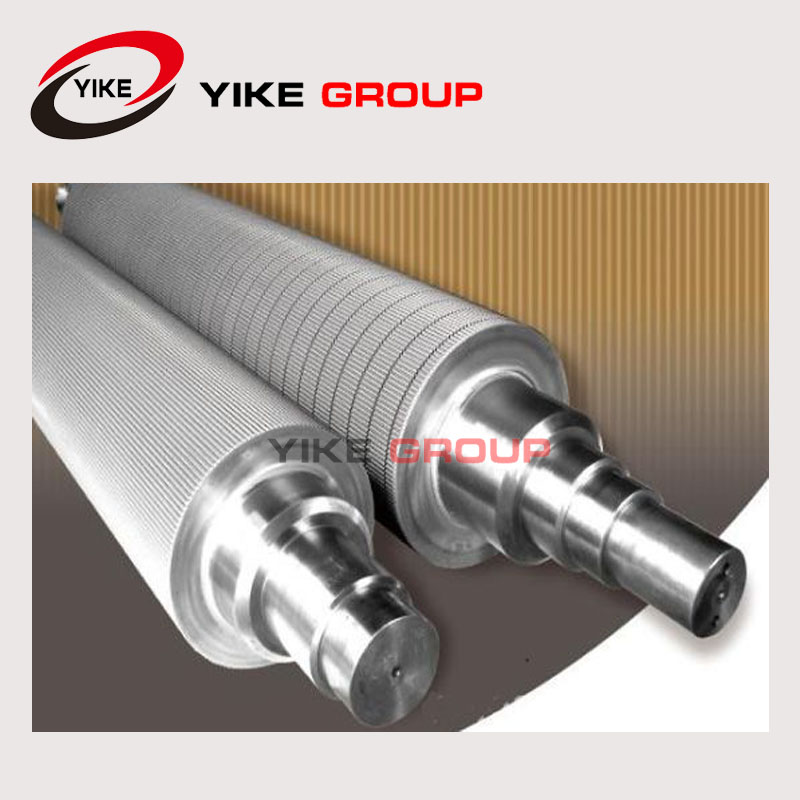

280/320/360mm Corrugated Roller With A B C E F G Flute

Name: 280320360mm Corrugated Roller With A B C E F G Flute
Brand: YIKE GROUP
Price: 5 USD

280/320/360mm Corrugated Roller With A B C E F G Flute Manufactures

Brand Name : YIKE GROUP

Model Number : YK-280,320,360

Certification : CE, ISO

Place of Origin : China

MOQ : 1set Corrugated Metal Roller

Price : $5,000.00 /set

Payment Terms : T/T, Western Union, L/C

Supply Ability : 300 sets per Month

Delivery Time : 80 days after deposit

Packaging Details : Wooden Box

Condition : 48 Crmo Hard Chrome Alloy Steel Corrugated Roller 280/320/360mm Size With A B C E F G Flute

Usage : Automatic Corrugated Single Facer Machine

Material : 45 # steel,tungsten carbide,CrMo,Alloy steel or tungsten carbide

Hardness : HRC50-68,HRC58o-60o.

Width : 1400-2500mm

Weight : Standard

Corrugated flute type : A B C E F Flute Single Facer Corrugation Roller

Diameter : 280 320 360mm Corrugator Roller

Product name : 1400-2500mm 240-380S single facer corrugated flute roller

Name : China Manufacturer Alloy Steel Single Facer Corrugation Roller,High precision alloy steel corrugated roller

Advantages : Professional manufacturer with low price

Suitable machine : 0-200m/min single facer machine

Contact Now

48 Crmo Hard Chrome Alloy Steel Corrugated Roller 280/320/360mm Size With A B C E F G Flute

Corrugated Roller

Features:

● High precision hard chrome steel A C B E F G flute corrugated roller

● Type: Hard Chrome & Tungsten Carbide

● Used for carton box corrugator machine-Single Facer

Description

1. Hard Chrome Type Corrugated Roller

● The upper and lower corrugated( corrugating, flute) roller for single facer machine

● Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser, the hardness is above HRC58o-60o

● The surface is well treated by grind and plated chrome.

● Different types of flute according to user's request.

Characteristics

Flute	A	C	BC	B	D	E	F	G
Profile	UV	UV	UV	UV	UV	UV	UV	UV
Counts(300mm)	34±2	36±2	44±2	50±2	66±3	96±4	124±10	185±12
Height	4.6-4.9	3.6-3.9	3.0-3.4	2.6-2.9	1.9-2.1	1.1-1.8	0.7-0.8	0.5-0.65
Take Up Rate	1.51-1.59	1.44-1.51	1.42-1.49	1.36-1.42	1.40-1.41	1.29-1.39	1.22-1.26	1.20-1.25
